Automatic Video Camera Based bullet Optical Surface Inspection Measurement Sorting Machine System

  Automatic Video Camera Based bullet Optical Surface Inspection Measurement Sorting Machine System is  high speed, 100% measuring and sorting screw inspection system. The Automatic Video Camera Based bullet Optical Surface Inspection Measurement Sorting Machine System enables highly precise 2D and/or 3D measurements, of high volume parts and components before they are introduced into production.Screw Inspection System  will help with eliminating costly process jams and malfunctionsbsp;



Automatic Video Camera Based bullet Optical Surface Inspection Measurement Sorting Machine System

• Automatic Video Camera Based Bullet Optical Surface Inspection Measurement Sorting Machine System vision-based fully automated solution with auto feeding and an automated sorting mechanism is proposed to meet the requirements of ammunition inspection
• The system shall consist of a feeder & conveyor for part transportation purposes. Inspection of the parts shall be carried out with machine vision where a camera shall capture the image of the part
• Software shall control the camera, acquire images from the camera, carry out measurements and analysis, and send commands to the sorter mechanism
• The sorter mechanism classifies according to the type of files. Accuracy: ± 10 µm, Speed of inspection (OK+NOK): – 150 to 200 Pieces/Min (Depending upon part size & feed rate)
• Automatic Video Camera Based bullet Optical Surface Inspection Measurement Sorting Machine System , with easy to use standard software, are leading the way toward zero defect quality.
• Automatic Video Camera Based bullet Optical Surface Inspection Measurement Sorting Machine System  can be used to inspect diffrent type screw
• Optional cameras are available to check for surface imperfections.
• Vision can be added to detect defects like missing threads, damage head, short in length.
• Windows based software makes part setup easy, and allows for part storage and retrieval.
• Developed software as per indian market requirement
• Run on Very High Speed FPGA based Motion Control Card and other controller
• User Friendly

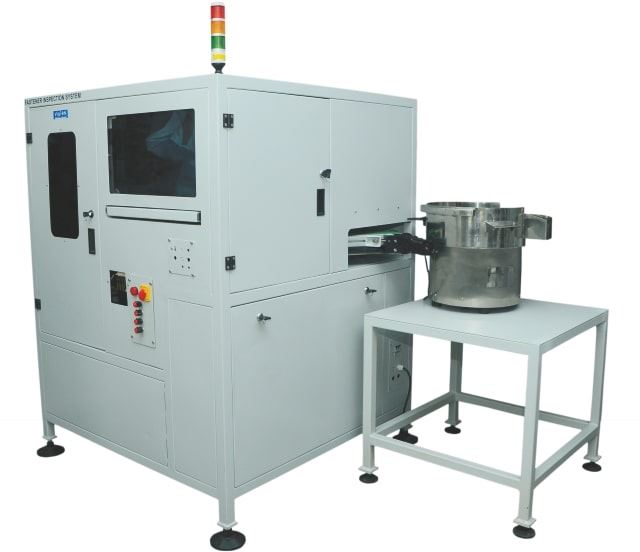

The machine will be consisting of

• Desktop Computer
• A Monitor
• Digital Cameras (USB/GigE/Ethernet)
• Precise Lens & Lights
• Vision tool analysis with VES engine
• Our Own Software
• Bowl Feeder for part feeding
• Feeding Conveyor
• Small bin for collecting NG parts
• Small bin for collecting OK parts

Automatic Video Camera Based bullet Optical Surface Inspection Measurement Sorting Machine System can inspect:

• Fire Hole Presence
• Ovality of Cases
• Stamping
• Bottom Diameter
• Groove Diameter and Angle
• Mouth Diameter
• Full form
• Primer Pocket Dimensions
• Rim Thickness
• Burrs inside Case

Optical Inspection for Bullet:

• Diameter of Bullet
• Bullet Length
• Surface Quality
• Bullet Concentricity

Optical Inspection for Full Cartridge:

• Full Form
• Cartridge Length
• Cartridge Diameters
• Surface Quality

Automatic Video Camera Based bullet Optical Surface Inspection Measurement Sorting Machine System

Automatic Video Camera Based bullet Optical Surface Inspection Measurement Sorting Machine System bullet, cartridge, cartridge case, bullet jacket cups, ammunition





Technical Specification: Bullet Case Inspection Sorting System

Description	Parameter
No. of Camera	1 to 6
Vision System	High resolution lanses and light source
Software	Accuvision Pro
Speed	200 ~ 1000 pcs/min
Operating system	WINDOWS XP/7
Weight	750 kgs
Accuracy	0.010mm
Size	2.1 X 1.4 X 1.9 Meter

Automatic video camera based bullet surface inspection measurement sorting machine system

Vision Embesoft Solution manufaturer and suplier of Industrial Sorting Machine in Ahmedabad Gujart India.. Industrial Sorting Machine is essential in any processing operation. Industrial Sorting Machine  sorts insert, bullet, nut, bolt, washer, precious parts, automobile parts, grain, plastic, food etc, helping QC/QA meet food safety requirements and achieve a purer product quality. Our sorting machine uses a range of technologies including cameras, lighting and software. Industrial Sorting Machine sorts product by defects by dimention and external materials by Geometry, shape, texture, and size. We also have an extensive product range based on budget, capacity and the product quality you need to achieve.
