Auto Parts Vision Inspection System



    A manufacturer of components for the automotive industry needed an automated solution to labor intensive process. Vision Inspection systems can perform repetitive tasks faster, more accurately, and with greater consistency over time than humans.



VES develops and installs Vision Inspection Systems for a perfect quality inspection, future-proof and flexible to get trouble-free production.



Auto Parts Vision Inspection System  features:

  • Auto Parts Vision Inspection System, with easy to Check Presence/Absence of part on Object.
  • Auto Parts Vision Inspection System, with easy to use standard software, are leading the way toward zero defect quality.
  • Auto Parts Vision Inspection System can be used to inspect Nuts, Rods, Washer, Fastener,O-ring, Screw, Bolt, Nut, special parts etc
  • Auto Parts Vision Inspection System check Cut on Outer Profile.
  • Optional cameras are available to check for internal threads and surface imperfections.
  • Vision can be added to detect defects like missing internal threads, nylon ring presence, and missing crimp.
  • Auto Parts Vision Inspection System can find Visual and dimensional defects.
  • Windows based software makes part setup easy, and allows for part storage and retrieval.
  • Developed software as per indian market requirement
  • User Friendly



Auto Parts Vision Inspection System can inspect

  • External and Internal diameter
  • Pitch Detail
  • Thread Detail
  • Incomplete processed articles
  • Slanted Thread
  • Reverse Thread
  • Pin Roundness
  • Length
  • Chamfer
  • Top, Bottom and Side Inspection
  • Presence/Absence Detection
  • Defect Detection
  • Automated Vision Test and Measurement
  • Pattern Matching
  • Vision Guided Robot
  • Part verification (orientation, function, dimension, finished part features)
  • Color Verification
  • Barcode Reading & Traceability
  • Head crack
  • Head height
  • Broken pin
  •

    Optical Sorting Machine

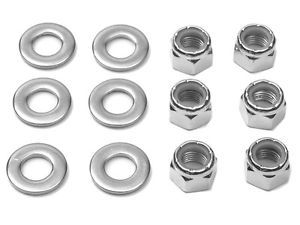

    Washer sorting machine,
    Nut sorting machine


    nut sorter, nut sorting, nut sorting machine, washer sorting machine
    nuts washer sorting machine

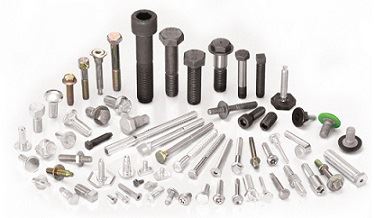

    Screw/ Bolt sorting machine


    screw sorter, bolt sorter, screw sorting machine, screw sorting machines, bolt sorting machine
    bolt screw sorting machine

    Eddy Current Sorting machine


    VES produces Eddy current sorter, Eddy current sorting machines which are suitable for screws, nuts or cylinder-type objects
    eddy current sorting machine

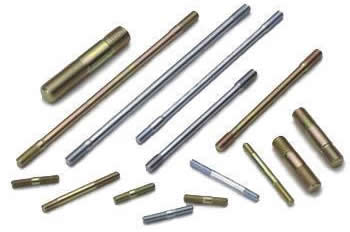

    Stud Optical Sorting machine
    Rod Optical Sorting machine


    VES sorting machines offers Rod/ Stud sorting machines, we developed PSV Sorting Machine for different rod/stud parts
    rod stud sorting machine



    Technical Specification: Auto Parts Vision Inspection System:



    Speed Accuracy
    Description Parameter
    No. of Camera 1 to 4(Optional)
    Vision System High resolution lenses and light source
    Software Accuvision Pro
    60 ~ 1000 pcs/min
    Lights Lights LED Lights with auto on/off
    Part Feeding high speed conveyor,Vibratory feeder and bowl
    Operating system
    Weight Weight 750 kgs
    0.010mm (Depend on Camera Resolution and FOV)
    Size Size 2.1 X 1.4 X 1.9 Meter
